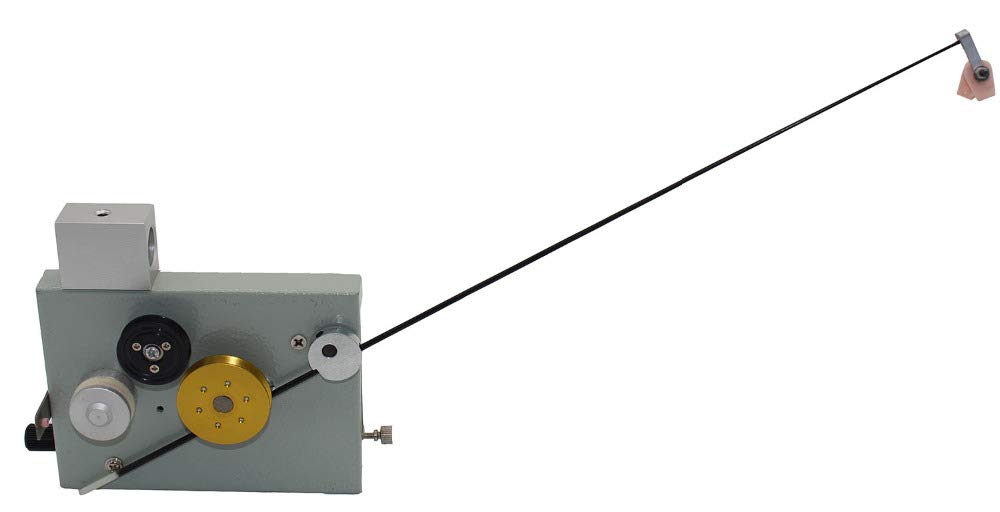

Magnetic Damping Tension Controller YHZ-03 - Permanent Magnet Tensioner for Coil Winding Machines | Precision Winding Tension Control for Motors, Transformers & Electrical Coils

Winding Machine Tensioner, Magnetic damping tensioner permanent magnet tension controller for Coil Winding MachineDescription: The tensioner is the key component of the winding machine to produce adjustable tension when winding, so that the enameled wire is wound with proper tension, so that the wound coil is tight and tight, and the coil technical index is consistent. Tension adjustment method: 1.It is recommended to adjust the scale value to 3 or more. If the tension is too large at this time, it is better to use a small size damper. 2.If it is used below the scale value of 3, there may be a pulsation of force. Please eliminate the pulsation as described in item 3 below. 3.Loosen the fastening screw, turn the scale to 10, and slowly turn the scale to 0 while turning the spindle, then turn to the desired scale value. Tighten the locking screw. 4.If tension pulsation occurs during use, repeat the above steps of adjustment method 3 until a satisfactory tension is obtained. 5.The damper uses the magnet to generate the medium magnetic field, and the material is brittle. Therefore, do not disassemble it during use to avoid damage to the machine. Include: 1 x Winding Machine Tensioner

The magnetic damping tensioner, also known as the permanent magnet tension controller, is a device that transmits a constant torque by using a magnetic field as a medium.

The damper disc is not in contact with the magnet and has no sliding friction, so the service life is long and the tension control is extremely stable.

The rotating parts are precision machined from a lightweight and sturdy material with minimal moment of inertia.

The tension output rubber wheel is made of elastic soft rubber and does not hurt the wire; The metal parts are treated with anti-rust treatment and have excellent corrosion resistance.

Simple installation structure, convenient adjustment of tension, compact structure, compact size, stable operation in various positions.
