MPI Ceramic One Step Plate Magnet 6" x 10.5" - Heavy Duty Tramp Iron Magnetic Separator for Industrial Equipment Protection | Food Processing, Mining & Recycling Applications

About this item Targets capture of large tramp metal: nuts, bolts and other large iron items. Effective reachout 2". Recommended in angled, higher volume product streams. Plate is installed above or below the flow to allow magnetic field to penetrate product stream. Made in USA, highest quality materials and workmanship. Permanent magnet material will not demagnetize. This is a professional product that will provide years of superb performance and trouble free service 100% Stainless steel enclosed design. 1” wide uniform sealing flange to prevent product leakage. 6" overall width x 10.5" overall length in the direction of the material flow. Requires opening 4" x 8.5" Cleaned by opening latch and moving magnet away from chute and manually wiping the surface of the plate clean Approx. weight 9 lbs. Capacity 1100 cu ft / hr. Max operating temperature 400F › See more product details

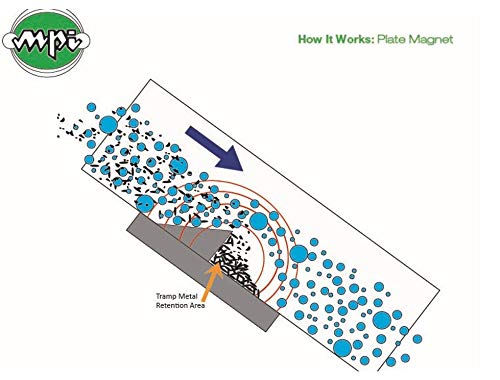

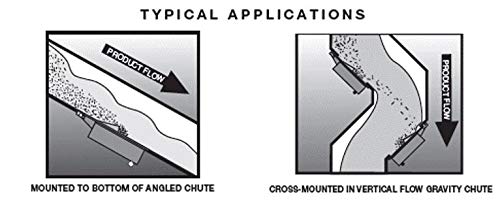

Targets capture of large tramp metal nuts, bolts and other large iron items. Effective reachout 2". Recommended in angled, higher volume product streams. Plate is installed above or below the flow to allow magnetic field to penetrate product stream.

Made in USA, highest quality materials and workmanship. Permanent magnet material will not demagnetize. This is a professional product that will provide years of superb performance and trouble free service

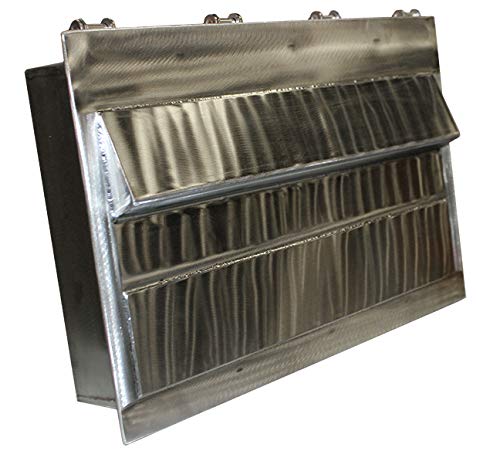

100% Stainless steel enclosed design. 1” wide uniform sealing flange to prevent product leakage. 6" overall width x 10.5" overall length in the direction of the material flow. Requires opening 4" x 8.5"

Cleaned by opening latch and moving magnet away from chute and manually wiping the surface of the plate clean

Approx. weight 9 lbs. Capacity 1100 cu ft / hr. Max operating temperature 400F
