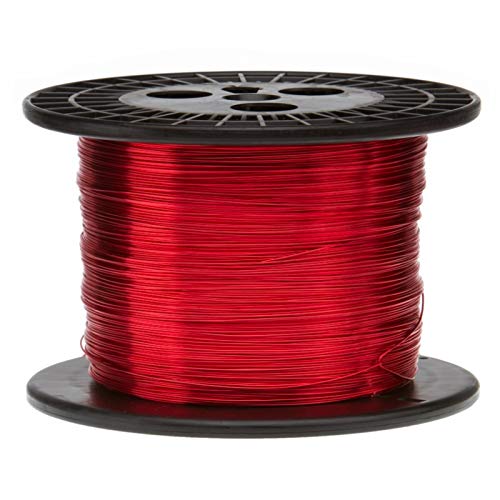

17 AWG Enameled Copper Magnet Wire - Heavy Build, 2.5 lb Spool (394 ft Length, 0.0482" Diameter, Red) - Perfect for DIY Electronics, Motor Rewinding & Transformer Coils

Magnet wire is copper wire with a thin layer of insulation, and it is used in a variety of applications including transformers, wound coils, motors, solenoids, and instruments. Raw copper is drawn to meet specific size requirements based on National Electrical Manufacturer's Association (NEMA) standards. This magnet wire meets the NEMA MW-80-C standard for operating temperature (155°C/311°F) and insulation makeup. The insulation is made from modified Polyurethane with a polyamide overcoat, which protects the coiled wire from short-circuiting.

Wire Weight / Length 2.5 lb (394 ft)

Insulation Solderable Polyurethane with Polyamide Overcoat

NEMA Rating MW-80-C

Build Heavy Min-Nom

Temperature Rating 155°C (311°F)
